Tube Joiner - Notchable - 1 3/4’’ x 0.102’’

Notch the end and weld straight to the tube at up to 45 degree angle.

Suits tube: 1.75" x 0.102" WALL = 44.45mm OD x 2.6mm Wall Thickness

Dimensions:

Outside Diameter: D = 44.45mm

Pipe inside diameter/diameter of ends of joiners: C = 39.3mm

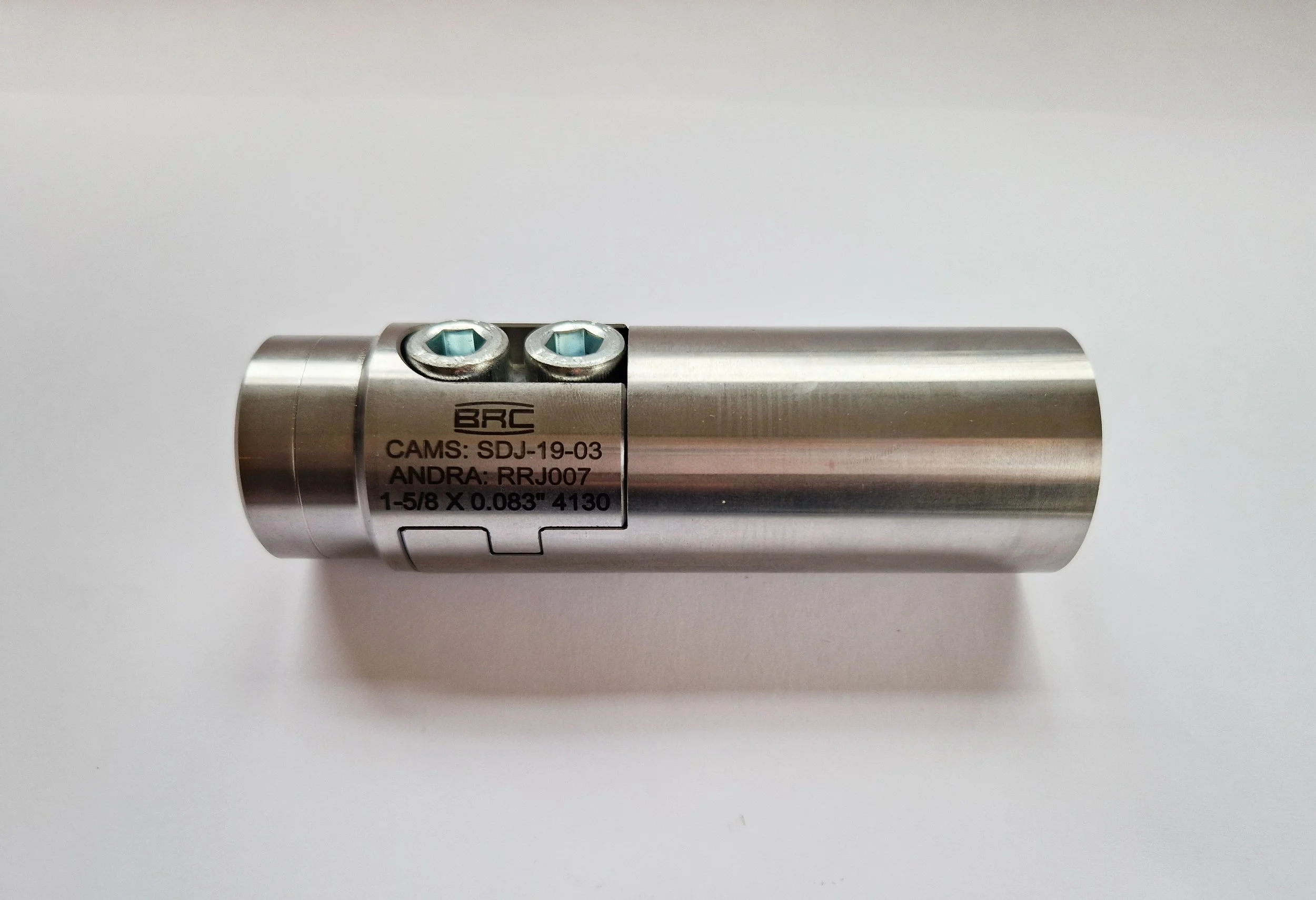

Tube Joiner - Notchable - 1-5/8" x 0.083"

Notch the end and weld straight to the tube at up to 45 degree angle.

Suits tube: 1.625" x 0.083" WALL

Dimensions:

Outside Diameter: D = 1.625" = 41.3mm

Pipe inside diameter/diameter of ends of joiners : C = 37.0mm
