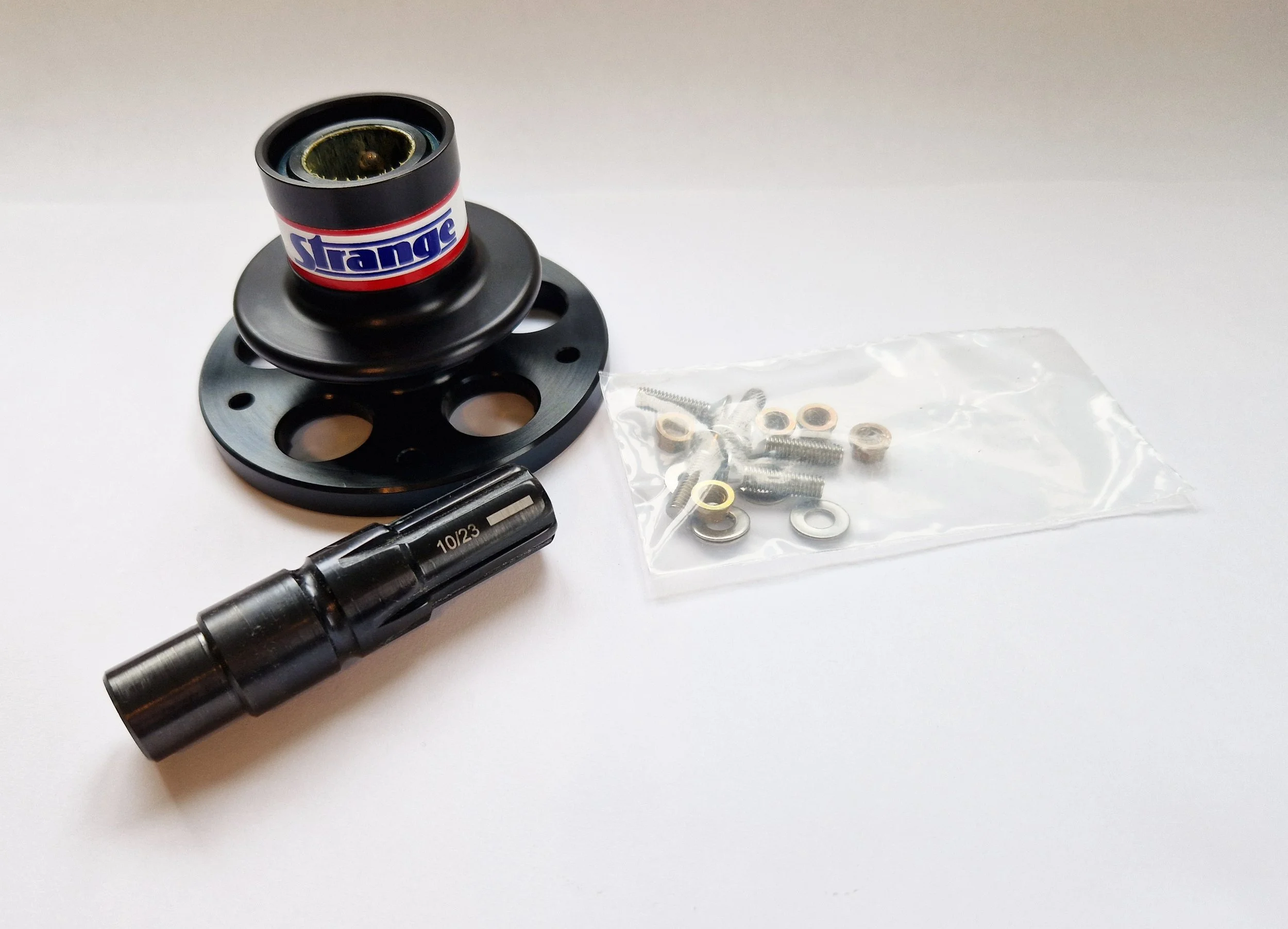

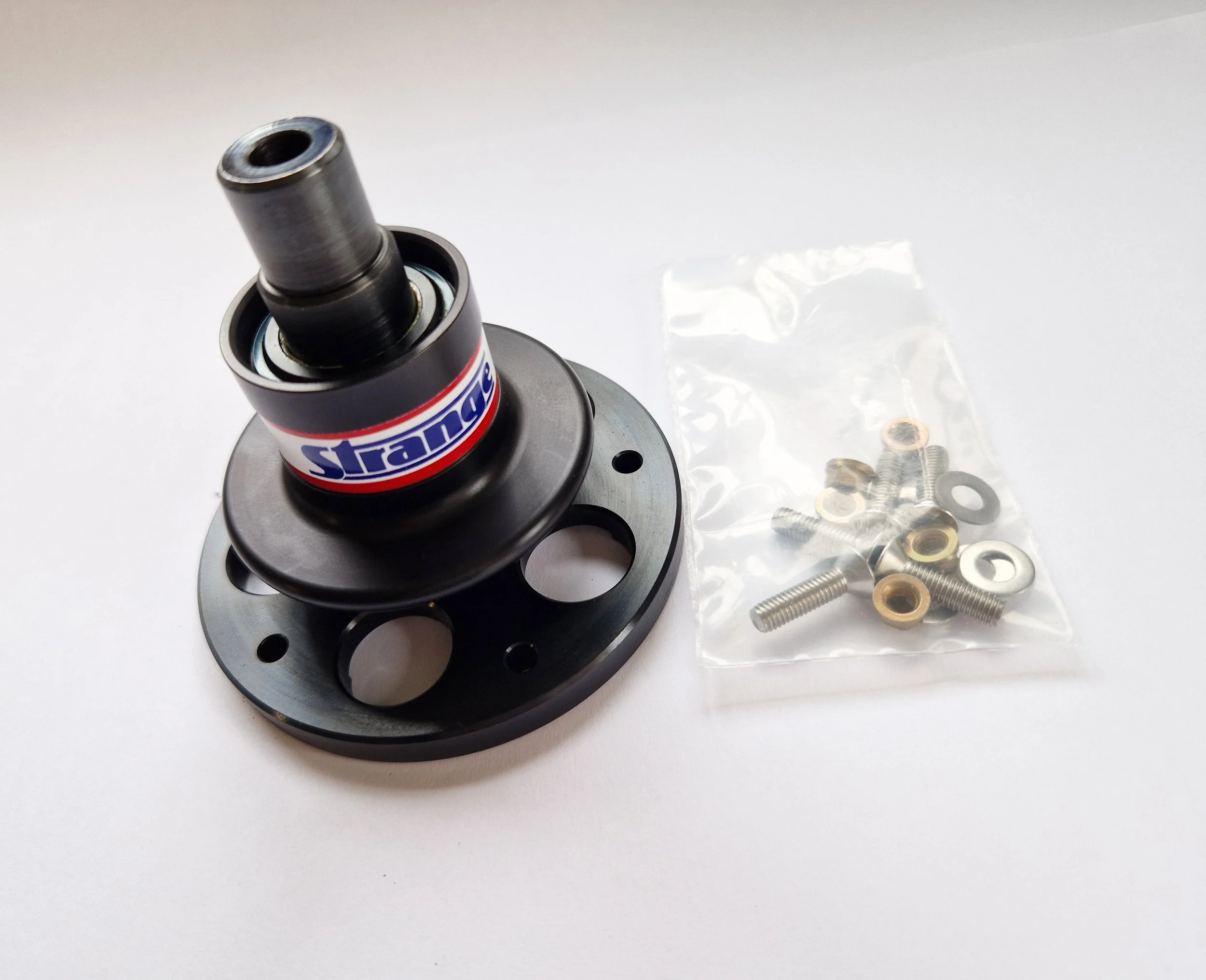

Strange Quick Release Hub (SFI approved) in 5 or 6 bolt configuration

• Designed specifically for Drag racing
• Provides quick removal of steering wheel
• Integral flange eliminates loose components
• Spring loaded with positive locking system
• Coarse spline simplifies engagement
• Master spline ensures proper steering wheel alignment

Hub
• 2024-T351 billet aluminum
• 3.500″ O.D.
• 5 on 2.834″ bolt circle .192″ holes OR 6 on 2.756″ bolt circle .192″ holes
• .750″ lightening holes
• Broach 10 spline with one spline removed
• Black hard anodized finish

Release Collar
• 6061-T6511 billet aluminum
• 2.480″ O.D.
• Black hard anodized finish

Weld End
• 4130 chrome moly
• 9 spline with one wide tooth
• .650″ OD tube end
• .312″ bore lightening hole
• Black oxide finish

Please specify when ordering whether you would like 5 bolt (Grant steering wheels with 5 bolt hole pattern) or 6 bolt (Sparco etc steering wheels with 6 bolt hole pattern)
