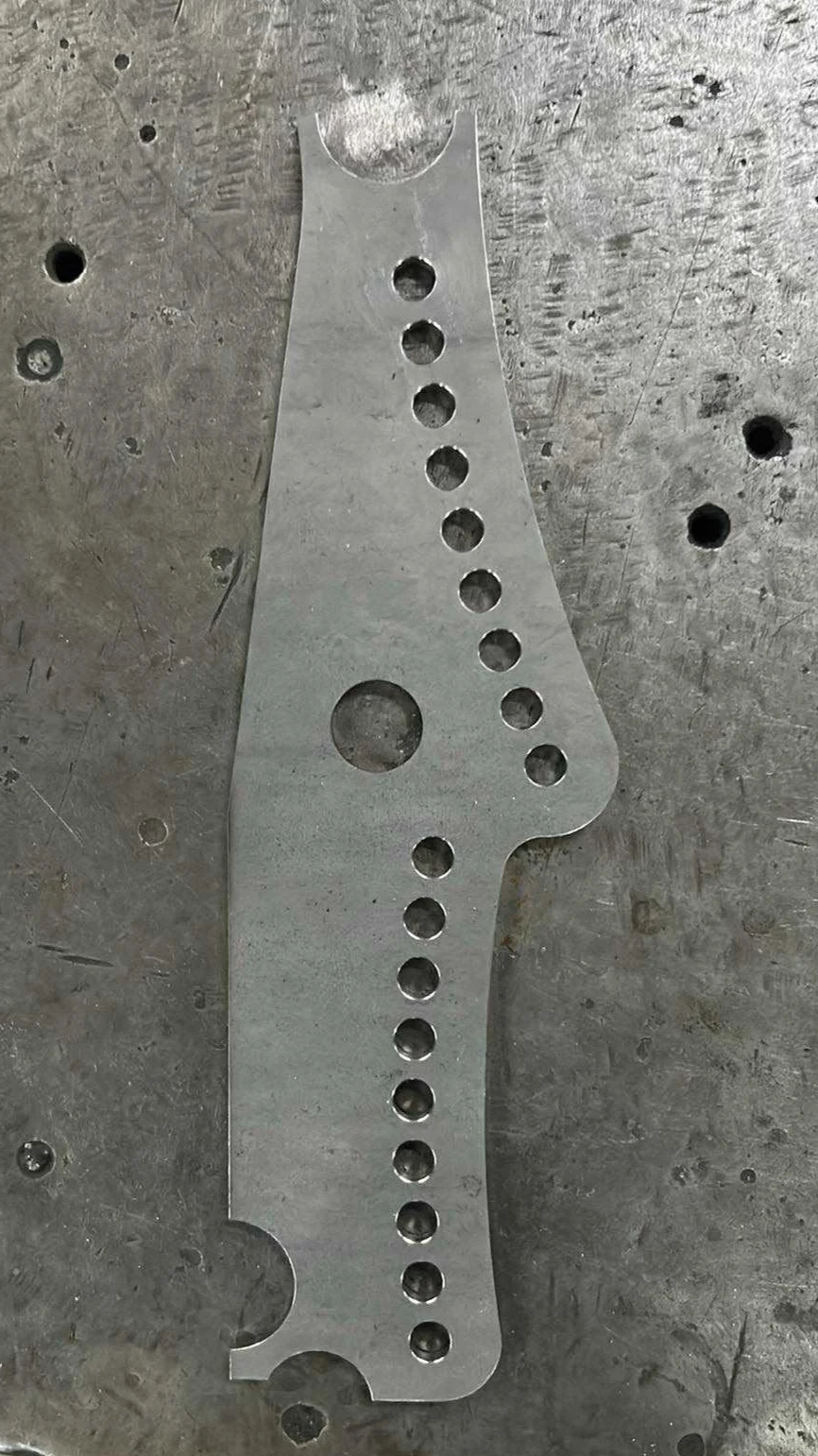

RRC 4-link chassis brackets are manufactured in 0.25” thick 4130 chrome-moly sheet metal to high quality specifications with precise hole locations and smooth profiles.

They feature 18 holes of adjustment with a hole spacing of 0.75”, for fine adjustability without sacrificing strength.

The brackets are pre-notched for 1.625” crossmembers with centres set at 14.125”. We have found this spacing places the crossmembers in positions that suit modern full enclosure seats.

Specifications:

• Thickness: 0.25”

• Material: 4130

• Notch Spread 14.125”

• Hole Spacing: 0.750”

• 4-Link Bolt Size: 0.500”

0.25” thickness 4130 upper and lower doubler plates are available as an option to improve hole position durability.

Sold in sets of 4.
