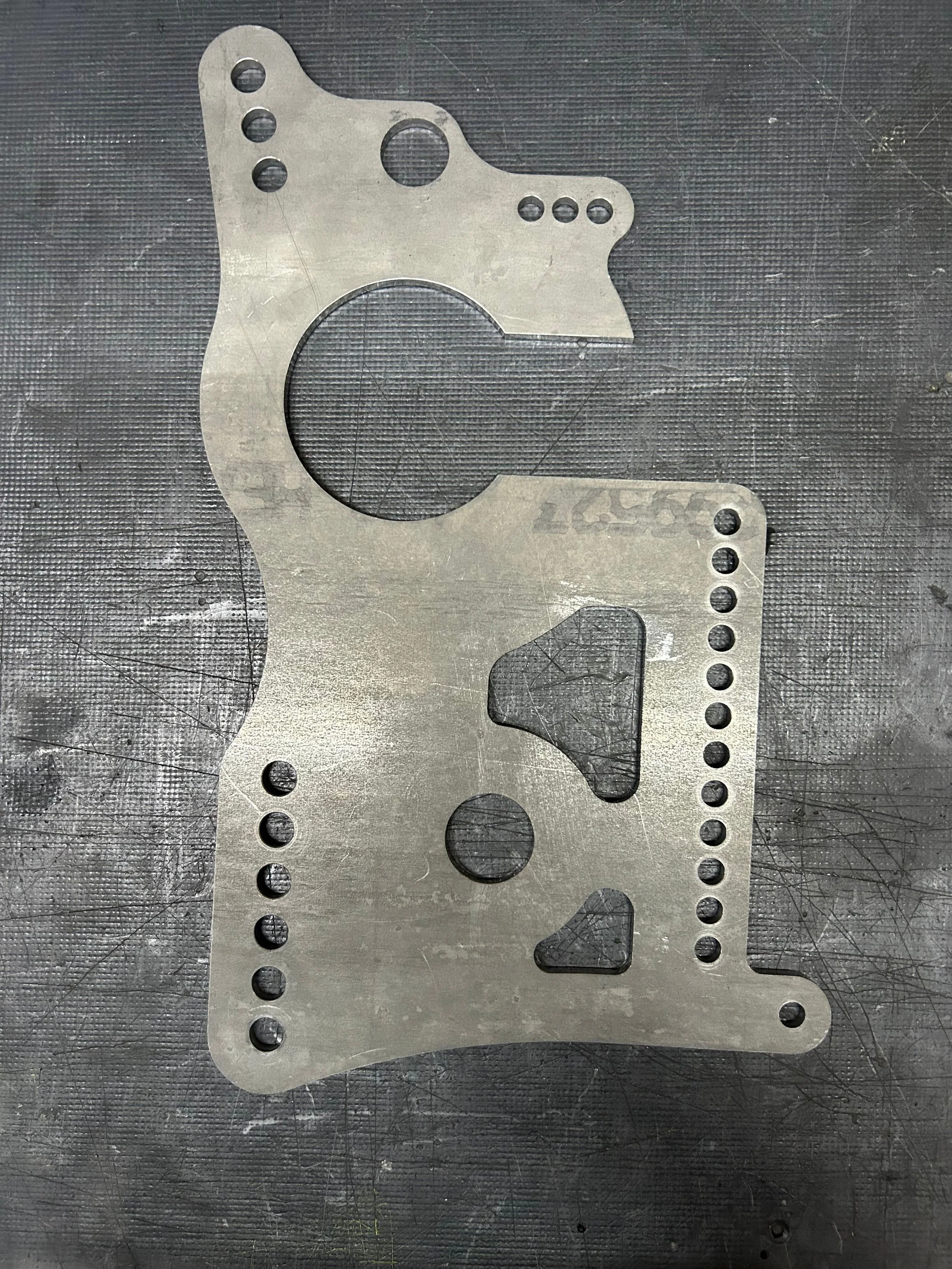

Our Axle 4-Link Plates are precision cut in 0.250” 4130 Chrome Moly sheet. They feature hole provisions for our Adjustable Shock Mounts. This allows the use of most tyre and shock combinations on the same plate, and also allows the user to change combinations quickly and easily (for example between big tyre and Drag Radial). The 4 link holes are 0.500”, with 3 upper holes and 6 lower holes. The hole spacing of 0.750”, for fine adjustability without sacrificing strength.

Specifications:

• Thickness: 0.250”

• Material: 4130

• Adjustable shock bracket mounting holes (use our shock brackets, sold separately)

• Hole Spacing: 0.750”

• 4-Link Bolt Size: 0.500”

0.250” thickness 4130 upper and lower doubler plates are available as an option to improve hole position durability.

Sold in sets of 4.
